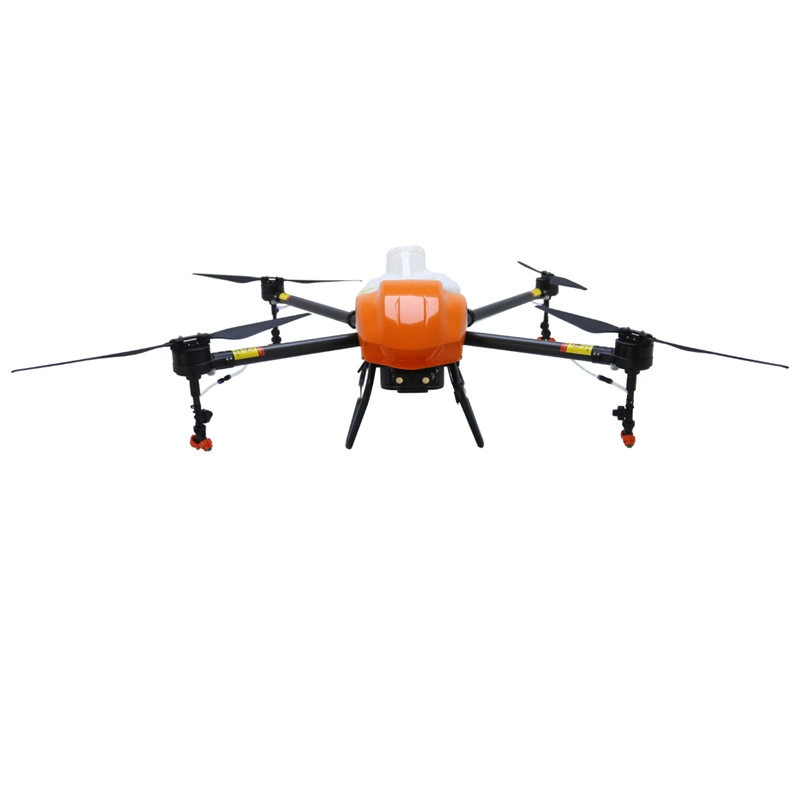

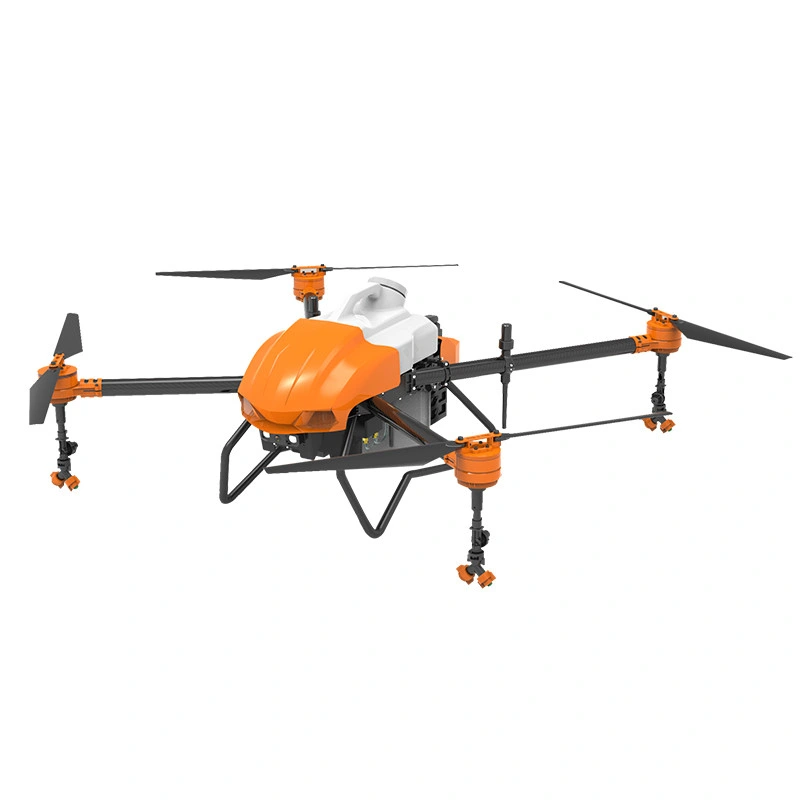

16kg agricultural spraying drone electric pesticide spraying uav autopilot uav drone crop duster
- OEM & ODM Service -
- OEM & ODM Service -
Remote control eye escort
U16L-4 supports digital image transmission technology, and the remote control range can reach 3,000 meters.Equipped with wide-angle FPV camera and night searchlight, it can monitor the aircraft operating environment to ensure operation safety.
BROUAV adopts industrial grade hardware structure and sensors, available for more communication modes.
BROUAV adopts industrial grade hardware structure and sensors, available for more communication modes.
| Model | U16L-4 |
| Product Material | Aviation carbon fiber + aviation aluminum |
| Airframe Dimensions(Incl. propellers) | 1840mm*1840mm*530mm |
| Airframe Dimensions(folded) | 740mm*370mm*530mm |
| Transport Dimensions | 900*450*600mm |
| Max Takeoff Weight | 34KG |
| Aircraft Weight | 12.4KG |
| Maximum Capacity(spraying system) | 16L |
| Flight Altitude | ≤20 meters |
| Flight Time (Unloaded) | 20~25 minutes |
| Flight Time (Full Loaded) | 10~13 minutes |
| Flight Speed | 1-10 m / sec |
| Spray Width | 4-8 meters |
| Spray Flow | 3-8L/min double pump adjustable |
| Nozzle Type | Imported high pressure anti-floating atomizing nozzle |
| Droplet Size | 60~90μm |
| Flight Controller | Industrial Version GPS and Controller |
| Navigation Method | GPS/GNSS RTK |
| Operating Efficiency | ≥7(ha/hr) |
| Safe Takeoff and Landing Wind Speed | ≤8 m/s |
| Motor speed | 5000rpm |
| Battery Voltage | 50.4V |
| Battery Capacity | 16000mAh*1( 12S Intelligent Lithum Battery) |
