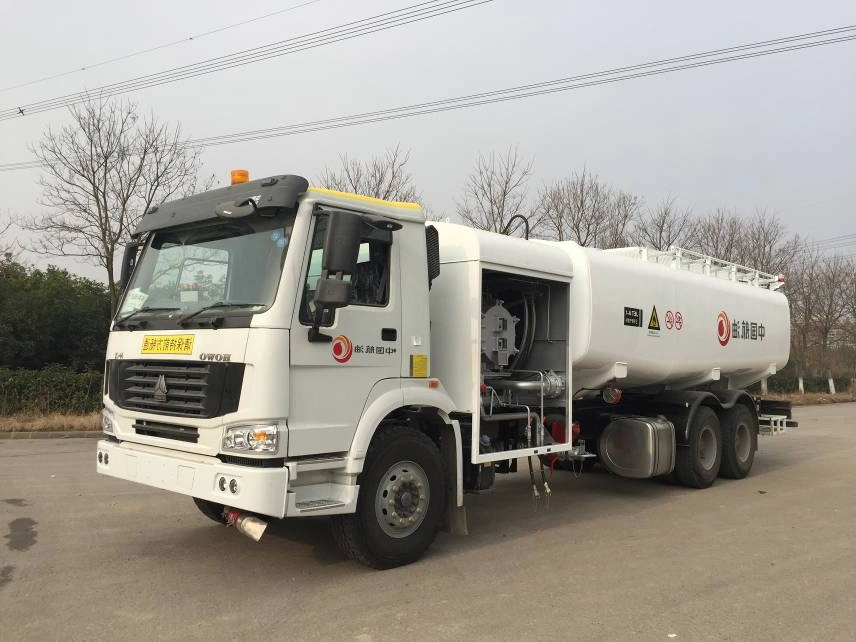

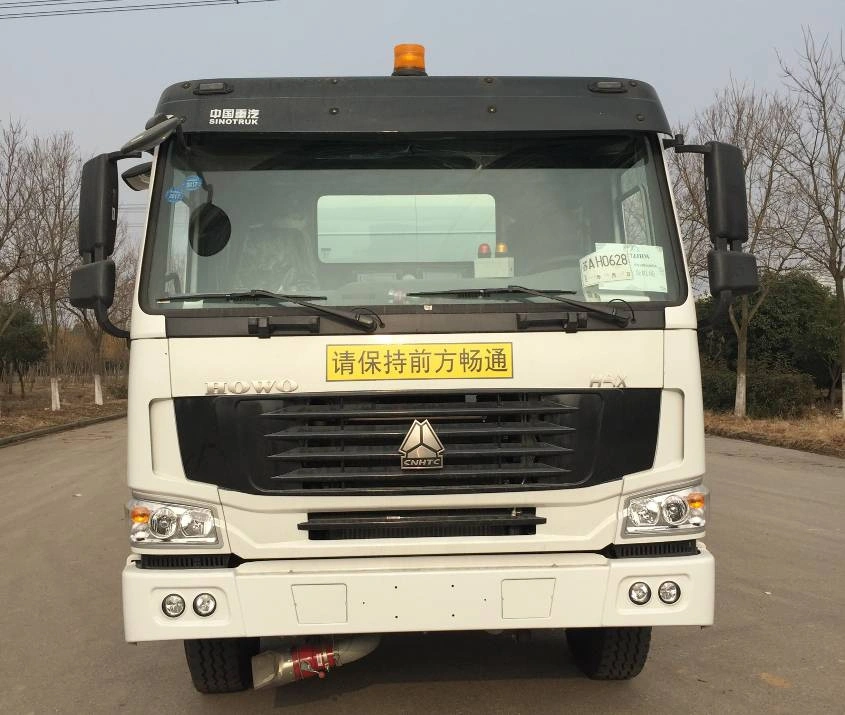

Aerosun CGJ5341GJJ Aircraft Refueller


Aerosun 25000L Cgj5341gjj Aircraft Fuelling Aircraft Refuelling

Aerosun 25000L Cgj5341gjj Aircraft Fuelling Aircraft Refuelling



1.Main standard
lQ/3201 CG 1038 Aircraft Refueller
lMH/T 6101 Aircraft Refueller

2.Operating Temperature
Low temperature type: -40 ºC~ +46 ºC

3.Main functions
lPressure refueling: pressure refuel all kinds of aircrafts or other containers from oil tank by its pressure refueling nozzle of reel hose after filtering and measuring.
lGravity refueling --gravity refuel all kinds of aircrafts or other containers from oil tank by its gravity refueling gun of reel hose after filtering and measuring..
lVacuum pumping oil: pumping oil from all kinds of aircrafts to its own oil tank by pressure refueling nozzle after filtering and measuring.
lMixing oil: mix oil in the oil tank.
lMobile pump station.
lElectronic control deadman (it can activate the time control system), beyond deadman.
lTank high and low level control and secondary high level alarm.

4.Entire vehicle technical specification
ModelCGJ5341GJJ
Payload: (kg)19625
Min. turning diameter: (m)20
Tank Volumegeometric volume27050 L
rated volume25000 L
Refueling flow rate (L/min)Gravity refueling300 (single hose)
Pressure refueling1200 (single hose)
Max. Bottom Loading Flow Rate (L/min)1500 (single hose)
Max. De-fueling Flow Rate (L/min)300 (single hose)
Accuracy of Flow mete±0.1%
Tank MaterialAluminum Alloy 5083,6mm
Closing pressure of refueling nozzle345±50KPa
Pressure reel hoseDN63*25m
Gravity reel hose DN38*15m
Filter Separator StandardComply with EI 1581 5th
