Function
Power Indicator Battery usage and charging indicator.
Parking Light Button Switch Press the button for flashing of double flash lights as parking signal.
Head Light Button Switch Press down for lighting up headlight and further press on button for flash of headlight.
Horn Control Switch Button Press down for sounding horn and release for stopping the horn.
Speed Adjustment Button Turn anti-clockwise for slower speed control and clockwise for faster speed control.
Specification
Power Indicator Battery usage and charging indicator.
Parking Light Button Switch Press the button for flashing of double flash lights as parking signal.
Head Light Button Switch Press down for lighting up headlight and further press on button for flash of headlight.
Horn Control Switch Button Press down for sounding horn and release for stopping the horn.
Speed Adjustment Button Turn anti-clockwise for slower speed control and clockwise for faster speed control.
Specification
| Model No | S6021 |

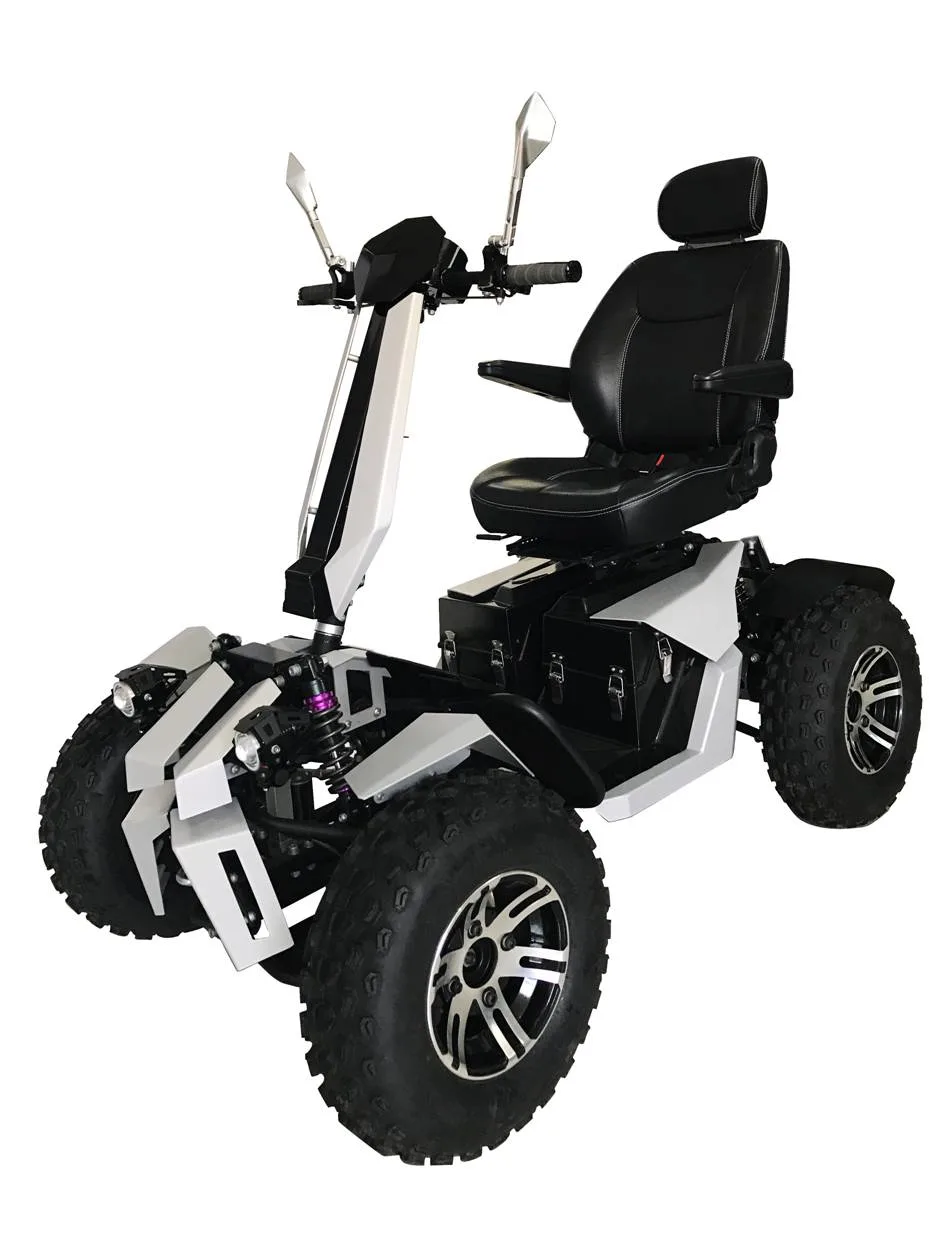

| Description | Predator X (4 wheel drive) |
| Dimension | 1810*1100*1540mm |
| Battery weight | 2 lead acid battery/58kg |
| Product weight | 182kg(without battery) |
| Gross weight (with packing) | 290kg |
| Wight capacity | 400lbs (180kg) |
| Travel range | 30km |
| Max. speed | 15km/h adjustable |
| Turn radius | ≤2.5m |
| Climbing | 15º |
| Driving system | 4WD |
| Obstacle Climbing | 120mm |
| battery | lead acid batteries,24V/100AH x 2 |
| Motor | 24V/500W x 4 |
| Contoller | Dynamic/200A |
| Wheel | 22" |
| Charger | 24V/15A |
| Ground clearance | 175-200mm, adjustable |
| Seat height | 820mm |
| 20' container | 6 (with wooden case) |
| 40'HQ | 20 (with wooden case) |
| 45'HQ | N/A |
