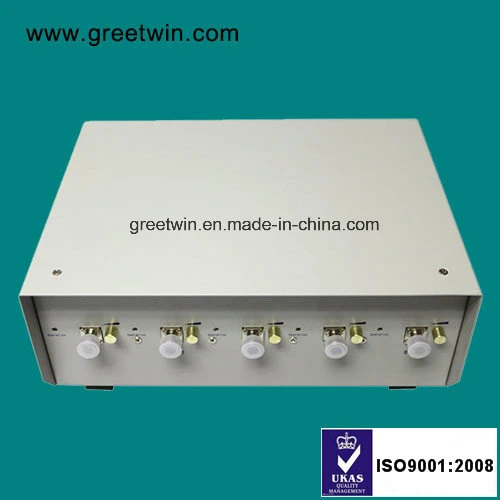

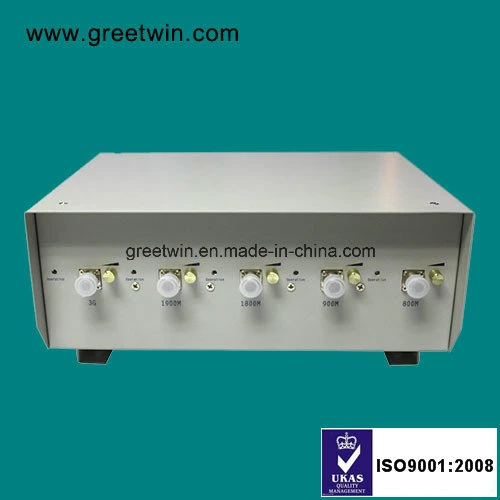

Signal Jamming System/ Unmanned Aerial Aeroplane Signal Jammer/ UAV Jammer(GW-UAV50)
Model. GW-UAV50
Product Description:
TheUAV/drone jammer is our company's latest product designed by R&D department, against the widespread use of UAV nowadays.
It disables the targeted UAV by jamming the UAV's remote-control signal and GPS signal(include GLONASS,GALILEO,BDS), to force the UAV fall or return. The jamming distance reaches more than 1000M.
Function:
Effective interference with UAV Remote-Control Signal 2400MHz, GPS signal, Remote-Control Signal and Image Transmission Signal 5800MHz.
Features:
1. High integration & Stable operation, VCO technology.
2.UHF broadband jamming technology: highly effective power & long jamming distance.
3.Separate control of each module, convenient operation.
4.High quality tubular radiator, effective in radiating heat.
5.Import components; the moderating circuit-starting design avoids a spark
when the device turn on/off.
6.Batteries are separate from the main device, easy to be replaced and maintained.
Application:
Mainly applied to prisons, airports, scientific research centers, detention houses,
interrogation rooms, courthouses, labor camp, all kinds of military important places, etc.
that forbid aerial photography by use of UAV.
Technical Parameters:
| Channel | working frequency | Output power(±1dBm) |
| 2.4G | 2400-2485MHz | 44 dBm |
| 5.8G | 5725-5850MHz | 33 dBm |
| GPS L1 | 1550-1610MHz(GPS,GLONASS,GALILEO,BDS) | 40 dBm |
| GPS L2 | 1190-1300MHz(GPS,GLONASS,GALILEO,BDS) | 40 dBm |
| 900M | 902-928MHz | 44 dBm |
| Battery (optional); Working 1.5 hours continually output power: 72 W Jamming radius is 300 ~ 1000meters | ||
| Power consumption :200W Main engine weight :10Kg Size:450×250×300mm | ||
| humidity: 30%-95% running temperature : -25 to +50ºC | ||
Recommended Accessories:
1) Donor antenna: Log Periodic Antenna (9dBi,806-960/1710-2700MHz)
2) Service antenna: Omni Ceiling Antenna (3dBi,806-960/1710-2700MHz)
3) 5D-FB coaxial cable with connecter (Cable length optional)
Method of Installation:
The booster is fixed onto the wall through expansion bolts.
A. Drill holes in the selected place and install expansion bolts.
B. Align the holes with the expansion bolts, place flat washers, spring washers, and nuts in turn, and tighten the nuts to fasten the installing support.
C. Place the booster on and fasten it.
D. Connect cables and power cables to the booster respectively.
E. After installing the booster as described above, power on the booster to check the operation status.
Connection:
A. BTS Port: donor antenna cable is connected with Outdoor Port;
B. MS Port: service whip antenna is connected with Indoor Port;
C. DC IN connected with Power adaptor.
Q1.Payment Method
T/T, Western Union, Paypal, and Credit Card are available,
and we suggest paying by Alibaba Trade Assurance, the most favor, and security method.
*Other methods please us with more details.
Q2.Delivery Date&Lead Time
| Quantity | Lead time | Delivery to American/Middle East/Asia/Europe |
| <20 pcs | 3-5 business days | 3-7 business days by DHL 5-7 business days by FedEx/UPS |
| 20-100 pcs | 7-15 business days | |
| >100 pcs | 15-24 business days |
Q3. Can I customize frequencies?
Yes, we can customize 2G/3G/4G/5G/GSM/CDMA/DCS/AWS/PCS/WCDMA/LTE,etc.
Q4. What should I do if I don't know about frequency in my country?
Please feel free to us with your inquiry, we will find the frequency you need and address your problems.
