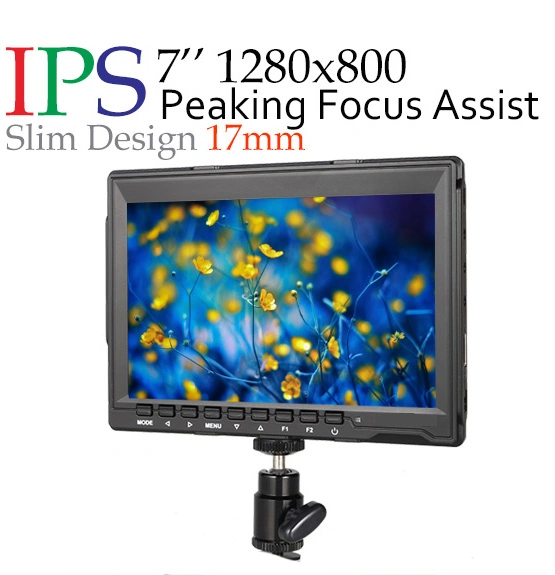

HDMI Input IPS 1280x 800 7 Inch LCD Display
Applications:
For full HD Vedio Camera in taking photos and Making Movies.
Advanced Features :
1. Wide view angle IPS panel,Ultra HD1280x800 resolution
2. The enhanced 400cd/m2 backlight and 800:1 color contrast ratio
3. Slim design 17m
Portable Light compatible for Steadycam,DSLR Rig,Camcorder Kit,HandheldStabilizer,Video Camera Crane
4. Inputs:Video,Audio,HDMI
Outputs:Wire remote OSD controller,Built-in Speaker,3.5mm Audio
5. HDMI Mode:
480i / 576i / 480p/576p; 1080i (60/59.94/50);
720p (60/59.94/50/30/29/25/24/23.98)
1080p(60/59.94/5030/29.97/25/24/24fps/23.98/23.98fps)
6. Peaking Focus Assist
7. Exposure(Zebra)
8. Histogram
9. False Colors
10. Camera 5D II Mode
11. Check Field:(Red,Green,Blue,Mono)
12. Image Flip(U/D,L/R)
13. Centre Marker
14. ScreenMarker(80%,85%,90%,93%,96%,2.35:1)
15. 4:3&16:9 image adjustable
16. Pixel-to-Pixel
17. Image Freeze
Specifications :
| Description | 7'' Slim Design Ultra HD IPS 1280x800 Field Monitor HDMI input |
| Model | 759P |
| Resolution | 1280x800 pixels |
| Dot pitch | 0.11775(H)x0.11775(V) |
| Aspect ratio | 16:10 |
| Brightness | 400cd/m² |
| Contrast | 800:1 |
| Viewing Angle | 89°/89°(L/R) ,89°/89°(U/D) |
| Backlight | LED |
| HDMI Support Mode | 480i/480p/576i/576p |
| 720p(60/59.94/50/30/29/25/24/23.98) | |
| 1080i(60/59.94/50) | |
| 1080p(60/59.94/50/30/29.97/25/24/24fps/23.98/23.98fps) | |
| HDMI | 1 |
| Video | 1 |
| Audio | 1 |
| OSD Controller | 1 |
| Speaker | 1 |
| Ear Phone Slot | 1 |
| Power Consumption | ≤5W |
| Input Voltage | 5.5V~35V |
| Working Temperature | -20ºC~50ºC |
| Storage Temperature | -30ºC~60ºC |
| Install Way | 1/4"-20 Thread Socket (1 bottom side) |
| Unit Size | 176Lx130Wx17H (mm) |
| Unit Weight | 0.4kg |
