SHAREVDI Firewall Appliance features an Intel Quad-Core Celeron processor with 2GB RAM and 32GB SSD drive making sure that almost any open-source firewall software will be running great on it. It also includes 4 gigabit Ethernet ports, including a LAN and WAN port for connecting the device to a home network.
The device is intended for experienced users and electronics hobbyists. It uses open-source software firewall distributions, which require some technical knowledge to install and configure.
The small form factor PC is built for use as a hardware firewall/router and includes a 32GB mSATA solid-state drive and 2GB of DDR3L RAM. However, users may upgrade the RAM up to 8GB. Some open-source firewall and other software that can be installed on this module include pfsense, dd-wrt, FreeBSD, ClearOS, CentOS, OpenVPN etc.
Pros: Works with a wide variety of open source firewall projects. Extremely reliable device. Provides a customizable solution for advanced users who can install a great open-source firewall for great protection. Offers whisper-quiet operation with fan-less construction with no mechanical or moving parts. Cons: Difficult for novices to set up and configure
Specification | |
General | Brand: SHAREVDI Type: Mini PC Processor: Intel Celeron Processor N2940 2M Cache, up to 2.42 GHz CPU: Intel Celeron N2940 4 core Core:4 GPU: Intel HD Graphics for Intel Atom Processor Z3700 Series RAMType: 1 x DDR3L (Low voltage 1.35V) Ram slot RAM:2G, 4G, 8G for optional Hard Disk type: support mSATA Hard Disk: 16G, 30G, 60G, 120G, 240G 480G SSD for optional WIFI: optional 4G Module: optional |
Product detail | Onboard LAN: 4 x Intel i211AT Gigabit Lan port WiFi: optional System: Windows10/7/8, Pfsense, Linux, etc. Color: Gray(Other color support customized) Cooling system: Fanless |

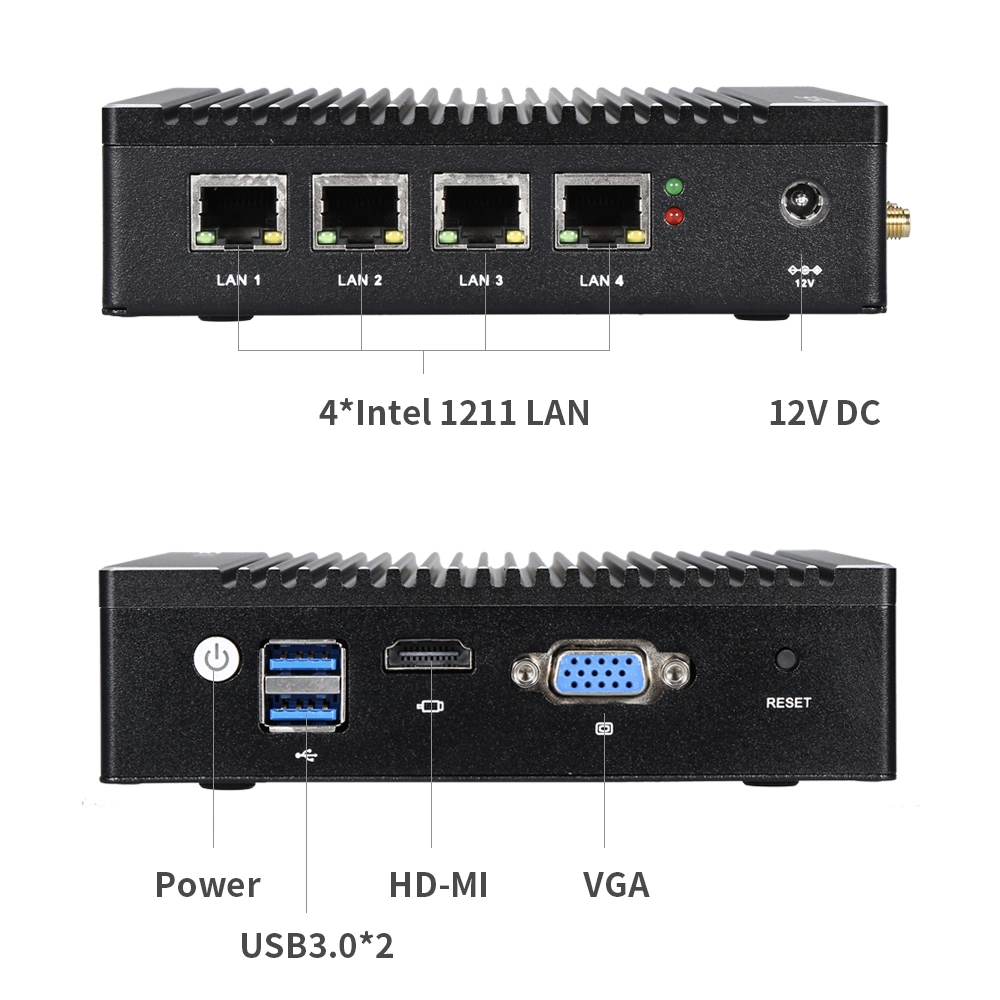

I/O Port | 2xUSB3.0 1xVGA+1xHD-MI 4xLAN 1x Switch |
Power Requirement | Power Type: External Power Adapter Mode Power Input Vol: 12V Power Input Ampere:5A |
Working Environment | Operating Temperature '-20-80ºC Storage Temperature 0ºC-80ºC Relative Humidity 10%~90% (non-condensing) |

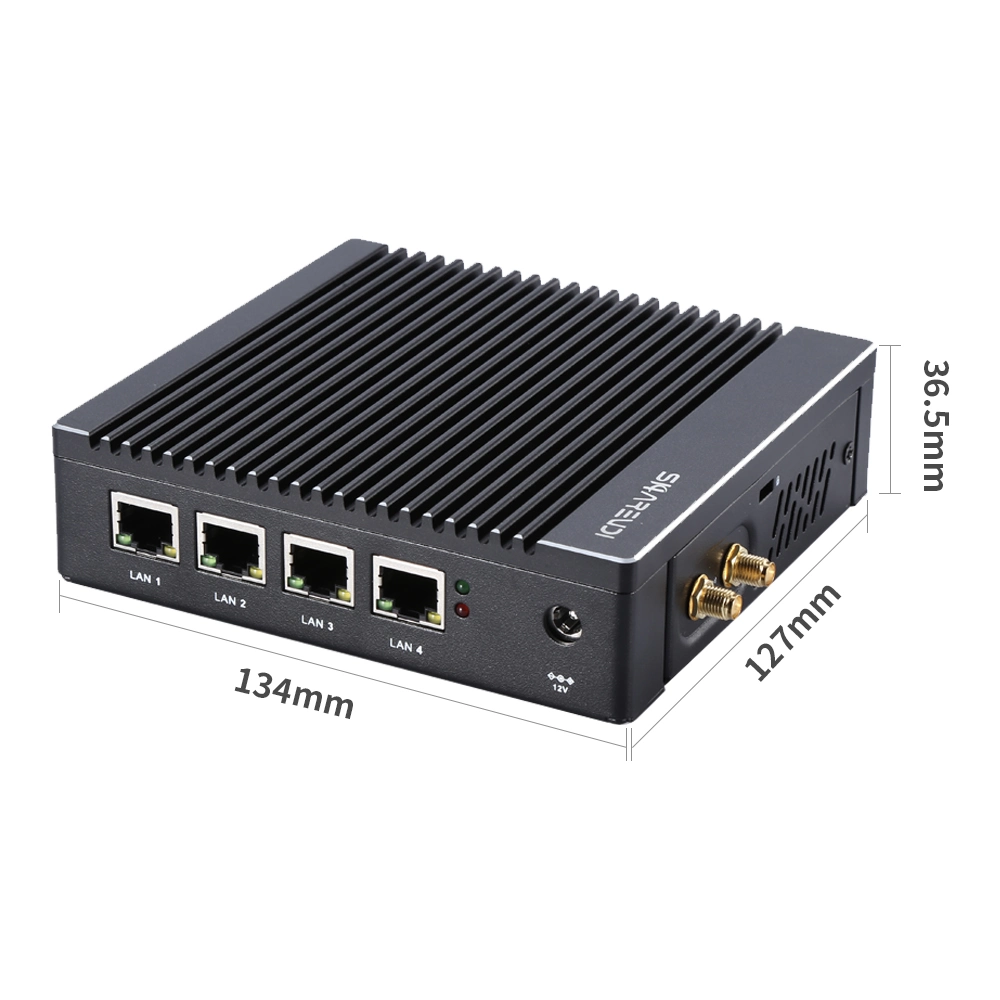

Dimension and weight | 134x127x36mm |
Package Contents | 1 x Mini PC 1 x User manual 1 x VESA mount 1 x Power Cable and SATA Cable 1 x Hard Disk Mounting Bracket |
* Secure your network with a compact, fanless & silent firewall.
* CPU: Intel Quad Core Celeron N2940/J3160, 64 bit, up to 2.2GHz, AES-NI hardware support
* PORTS: 4x Intel i211 Gigabit Ethernet ports, 2x USB 3.0, HD+VGA
Welcome to Shenzhen SHAREVDI Technology We are a professional manufacturer of computer hardware with well-equipped testing equipment and strong technical force.With a wide range,good quality, reasonable prices, stylish designs and huge Tech team support,our products are extensively used in many industries. look forwarder to start cooperation with you ! | |
OEM & ODM Service >>>Contact us<<< | |
OEM | 1. logo printing on housing 2. Customize package 3. Software Customization: Booting image, UI, APP, Function… and so on |
ODM | 1. PCBA desgin 2. Housing desgin 3. Software Customization: Booting image, UI, APP, Function… and so on |
Q: What's the warranty for these PC
A:We support 1 years Warranty, the second year and the third year,We can repair it free. But we will charge for the parts that need to change.
Q: Can you have my logo or company name to be printed on your products?
A: Yes. We can print your logo, company name on the products; we can provide OEM/ODM service for you.
Q: What is the Minimum Order Quantity (MOQ)?
A: We can sell one piece sample for your test.
Q: What is the lead time? (How long do you need to prepare my goods?)
A: 1-3 days for sample orders, 5-15 days for mass production orders(based on different quantities, OEM, etc.)
Q: How will you deliver my goods to me?
A:We ship by air generally. In the meantime, we cooperate with international expresses such as DHL, UPS, FedEx, and TNT to enable our customers to get their goods rapidly.
