1.Equipment components:

 Man-made uncoiler, Roll forming machine, computer control  system, hydraulic control system, cutting

Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building

manufacturing, and have features such as nice appearance and durable.

2. Main parameters of highway guardrail machine

               Main parameters of highway guardrail machine



Suitable to process

Color steel plate, galvanized sheet,aluminum coils and etc.

Effective width

310mm

3

Roller station

17 rows forming

7 roller leveling

4

Thickness of feeding material

2.0-2.5 mm

5

Productivity

8-12m/min

6

Rollers' material

45# forging steel

7

Diameter of shaft

100mm

8

Cutting tool material:

 Cr12 with quenched treatment 60-62°C

9

Weight

About 6.9T

10

Size

13.5*1.85*1.6mm

11

Voltage

380V  50Hz 3phases

12

Wall thickness of main forming machine

14mm steel plate

13

Main forming machine body

300 mm H steel

14

Total power

22+11 kw

15

Leveling power

2.2 kw

 Processing technique and deployment

Processes: 10T Hydraulic de-coiler-Leveling device--Punching station--Roll forming machine-PLC system-Hydraulic system-Cutter-Output table

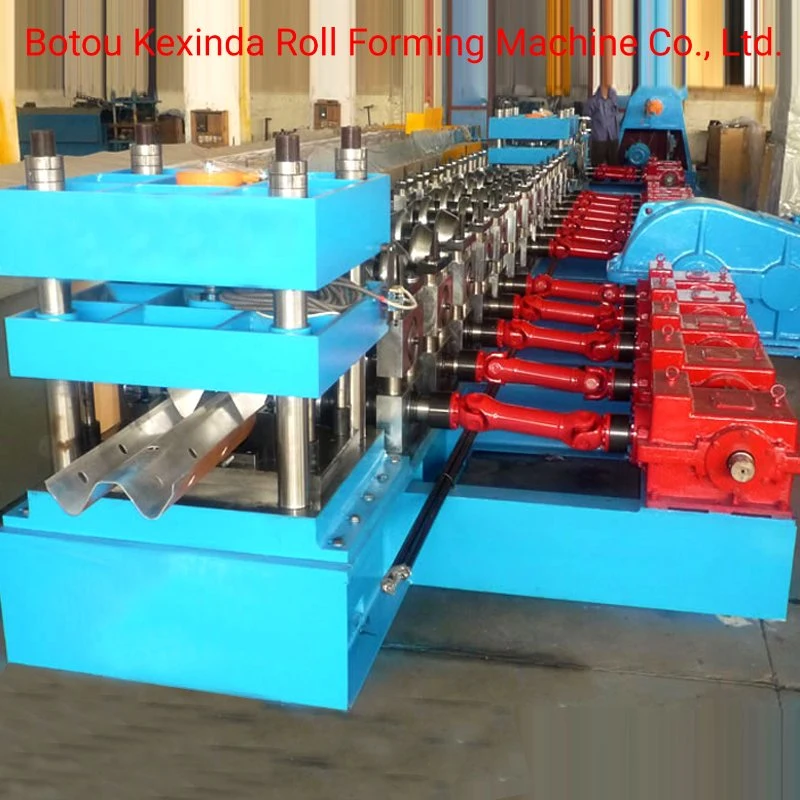

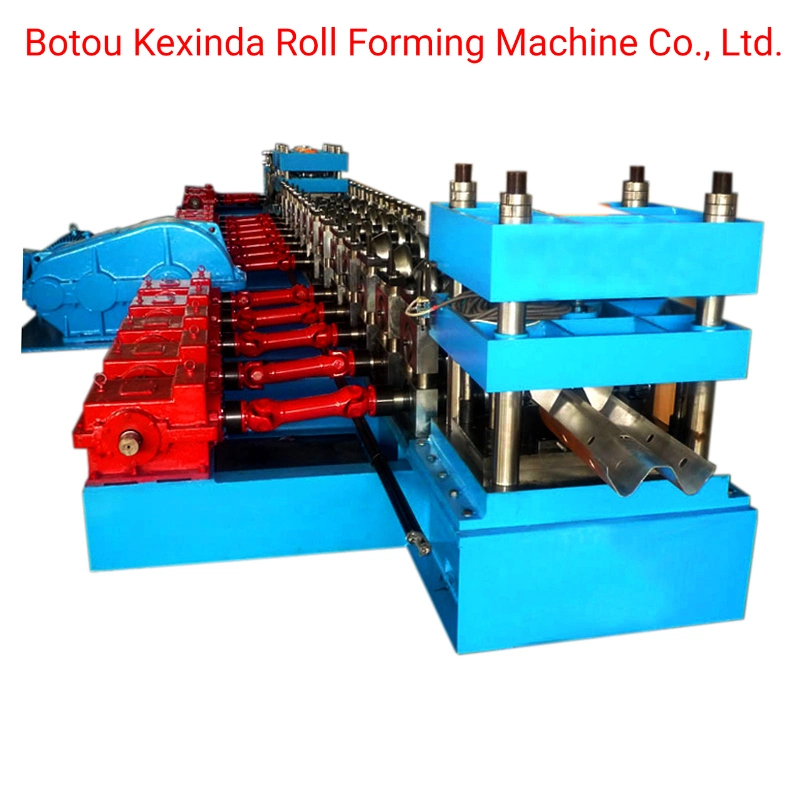

3.the picture of the  highway guardrail roll forming machine






                              4.The production process



DecoilerFlatingFeeding FormingCut to lengthColletion---(finish goods)


Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine



                              5.Production Flow


Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine
Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine
Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine
Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine
Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine

                            6.Packaging & Shipping

  Main machine is nude, the computer control box is packed with wooden frame
Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine

                   7.company overview
Kexinda Highway Guardrail W Beam Making Highway Guardrail Roll Forming Machine
8.FAQ


1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.

3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or SKype.
