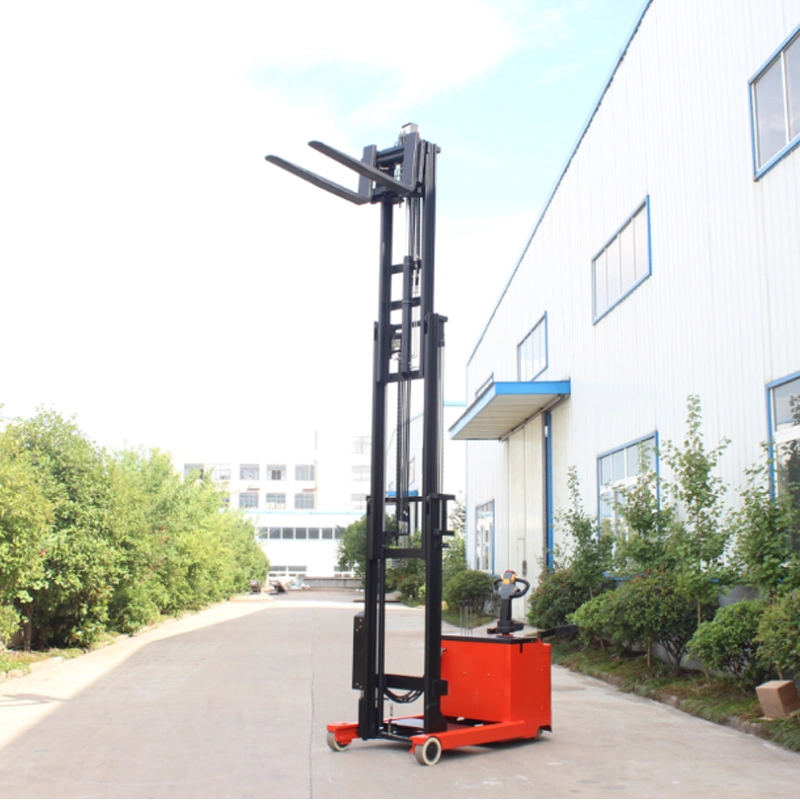

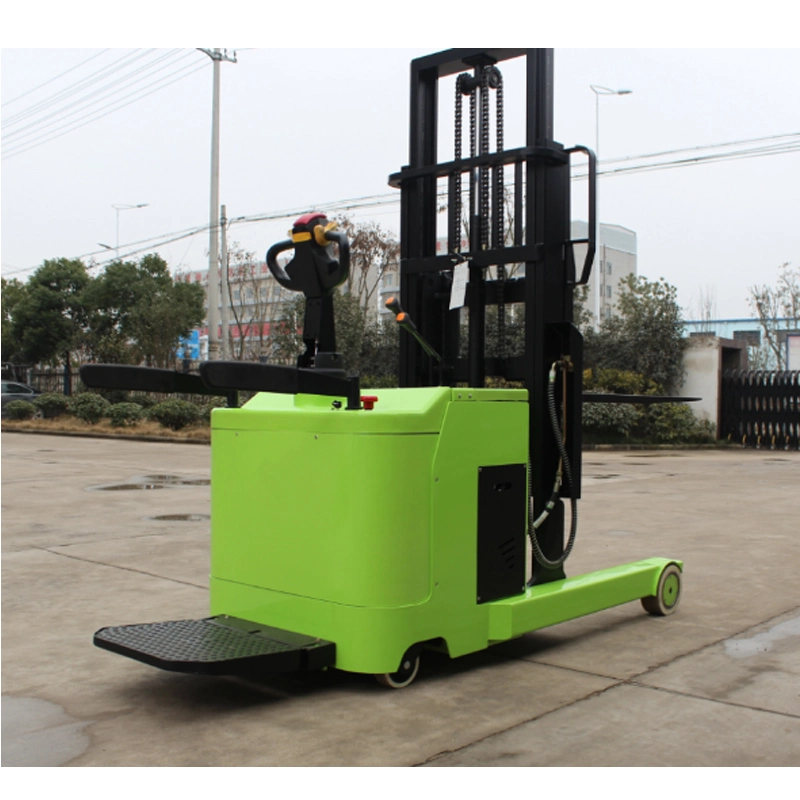

AC Motor Uas Curtis Controller 2 Ton Reach Truck Lift 8000mm with Camera

Product Description1. The damping spring does not need frequent adjustment, but can actively adjust the vertical driving unit according to the road condition to reduce the impact of driving unit, balance the force of driving balance wheel, and improve the smooth operation efficiency.2. Because of CURTIS electronic control, so we

Featured Products

Product Description
1. The damping spring does not need frequent adjustment, but can actively adjust the vertical driving unit according to the road condition to reduce the impact of driving unit, balance the force of driving balance wheel, and improve the smooth operation efficiency.

2. Because of CURTIS electronic control, so we have multiple automatic protection system controllers

3. High quality hydraulic system with buffer, low noise, small vibration, good sealing, stable and reliable lifting and falling.

4. The anti-skid braking function prevents the car from slipping when it is out of control or driving on a slope.

5. Ac drive, no carbon brush, maintenance-free, high efficiency motor, precise control, strong power output.

6. Multi-function handle, integrated control (acceleration, horn, emergency direction, lift button), man-machine design and operation more comfortable.

7. Wide visual field design, special channel steel, high strength, with the whole door frame moving forward, adjustable forging fork, easy to apply to a variety of pallets, small turning radius, can ignore the shelf bottom obstacles.


Main Features
1. Adjustable forging fork

2. Thicken and reinforce professional plate chain big front wheel

3. Special channel steel for thickening door frame

4. Apply to single and double deck pallet

 5. Portable power plug


Technical Parameters
   (Name)(CQD*A)()(24V)
(Operation type)(Standing posture)
Model No.) CQD10A-25CQD15A-25CQD20A-25
(Power type) (Full-Electric)(Full-Electric)(Full-Electric)
(Load Capacity)KG100015002000
(Max Lifting Height)H2(mm)250025002500
 (Load center)C(mm)500500500
(Wheel type) (Pu solid tire)(Pu solid tire)(Pu solid tire)
(Fork dimensions)mm1070*100*35 1070*100*35 1070*122*40
(Fork spread)mm210-680210-680245-702
(Reach distance)mm500600730
()(Overall length including fork)L(mm)233523352335
(Overall width)S(mm)103410341034
(Height--Mast Lowered)H1(mm)184018401840
(Maximum height when fork is lifting)H(mm)341634163416
()(Turning radius)Wa(mm)164517401890
(Min. stacking aisle)(Pallet 1000x1200)(Pedal folded)mm265526752725
(Min ground clearance)mm707070
(Grade ability)%5-85-84-6
(Max. travel speed) 4.0/5.04.0/5.04.0/5.0
(Total weight)KG187519002050
(Driving Wheel)mmØ230*75Ø230*75Ø230*75
(front wheel)mmØ210*85Ø210*85Ø210*85
(Balance wheel)mmØ150*50Ø150*50Ø150*50
(Battery capacity)V/Ah24/21024/21024/210
(Charger-Intelligent)V/A24/3024/3024/30
(Driving motor)Kw1.51.52.5
(Lifting motor)Kw2.22.22.2
(Drive Controlling Type) 1.5(AC)1.5(AC)2.5(AC)
(Walking Adjustable Type) (Holzer type accelerator)(Holzer type accelerator)(Holzer type accelerator)
 Brake Type
     mechanical steeringmechanical steeringmechanical steering
